GAME AND CREATE WITHOUT LIMITS

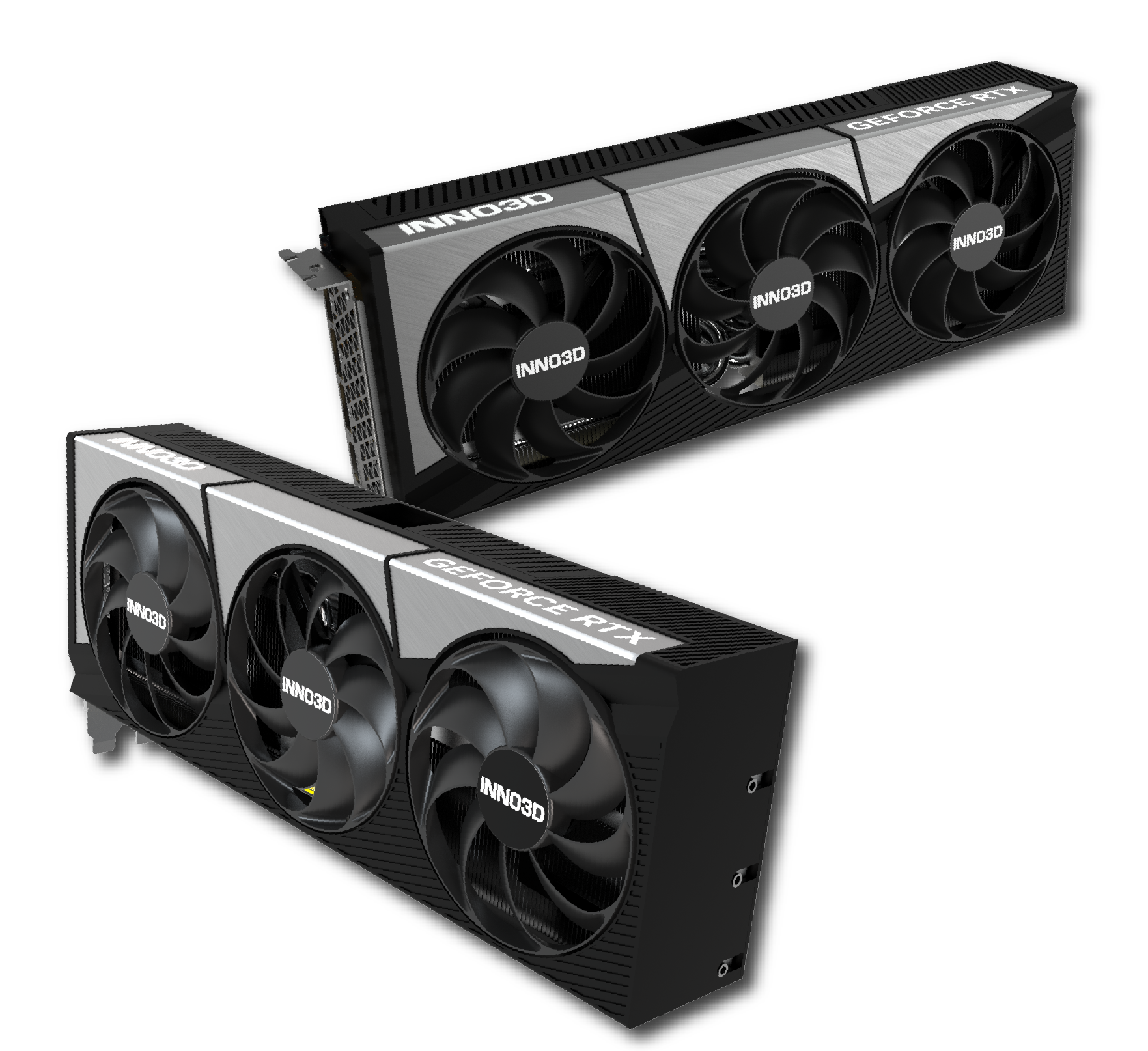

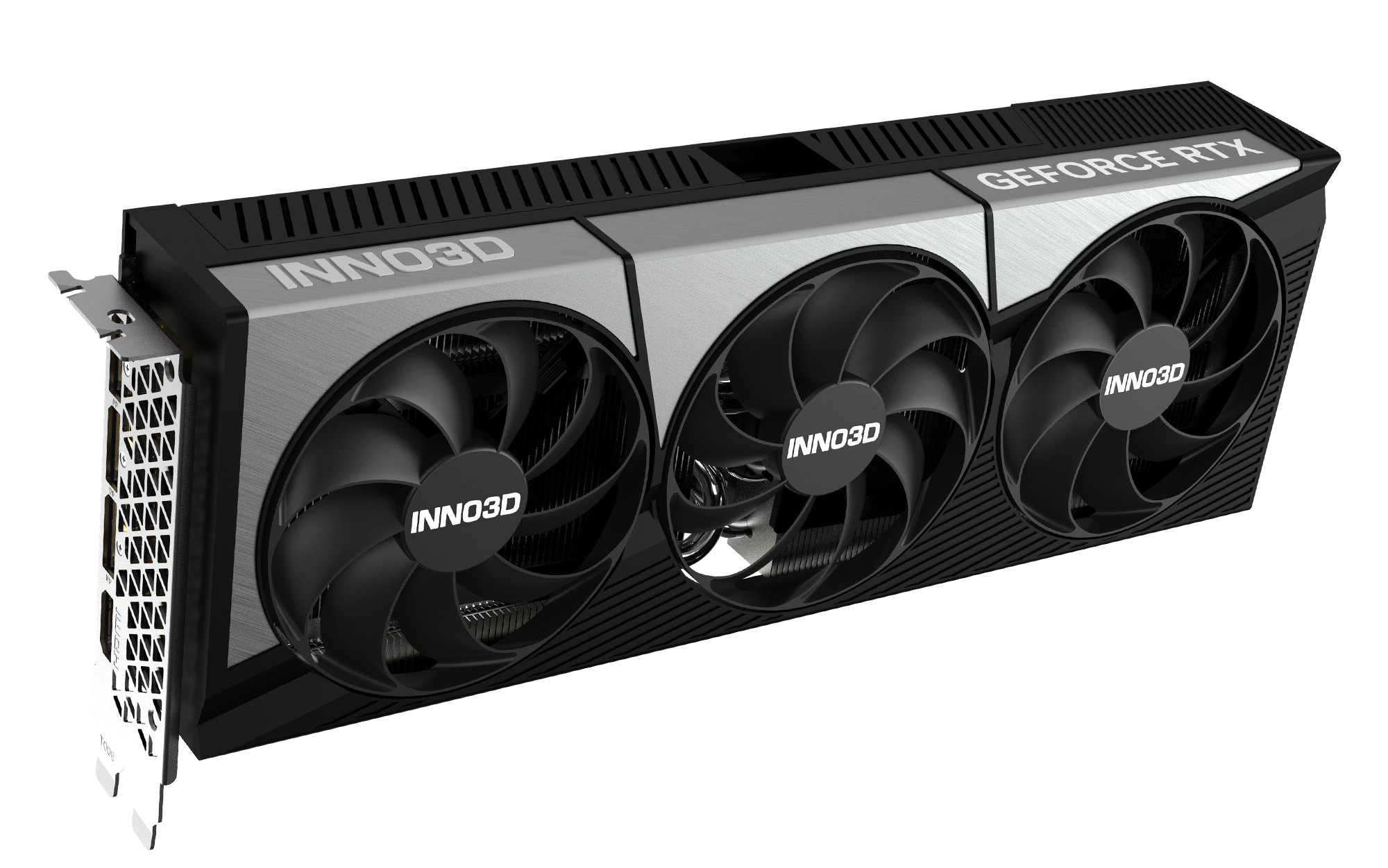

INNO3D GeForce RTX™ 5080 X3 OC

INNO3D GeForce RTX™ 5080 X3 OC
Datasheet:
GPU Engine Specs
GPU Engine Specs
CUDA Cores
10752
Boost Clock (MHz)
2640 MHz
Base Clock (MHz)
2295MHz
Thermal and Power Spec
Thermal and Power Spec
Minimum System Power Requirement (W)
850W
Supplementary Power Connectors
3x PCIe 8-pin cables (adapter in box) OR 1x 450 W or greater PCIe Gen 5 cable
Memory Specs
Memory Specs
Memory Clock
30Gbps
Standard Memory Config
16GB
Memory Interface
GDDR7
Memory Interface Width
256-bit
Memory Bandwidth (GB/sec)
960 GB/sec
Feature Support
Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
4th Generation, 171 TFLOPS
Tensor Cores
5th Generation, 1801 AI TOPS
NVIDIA Architecture
Blackwell
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
4
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI Express Gen 5
NVIDIA ShadowPlay
Yes
OS Certification
Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights
Yes
NVIDIA G-SYNC™-Ready
Yes
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost™
Yes
Vulkan API
1.4
OpenGL
4.6
NVIDIA Encoder
2x Ninth Generation
NVIDIA Decoder
2x Sixth Generation
Accessories
Accessories
Graphics Card Dimensions:
Graphics Card Dimensions
Length
300mm
Height
120mm
Width
50mm
Display Support
Display Support
Multi Monitor
up to 4
Maxmium Digital Resolution
4K at 480Hz or 8K at 165Hz with DSC
HDCP
2.3

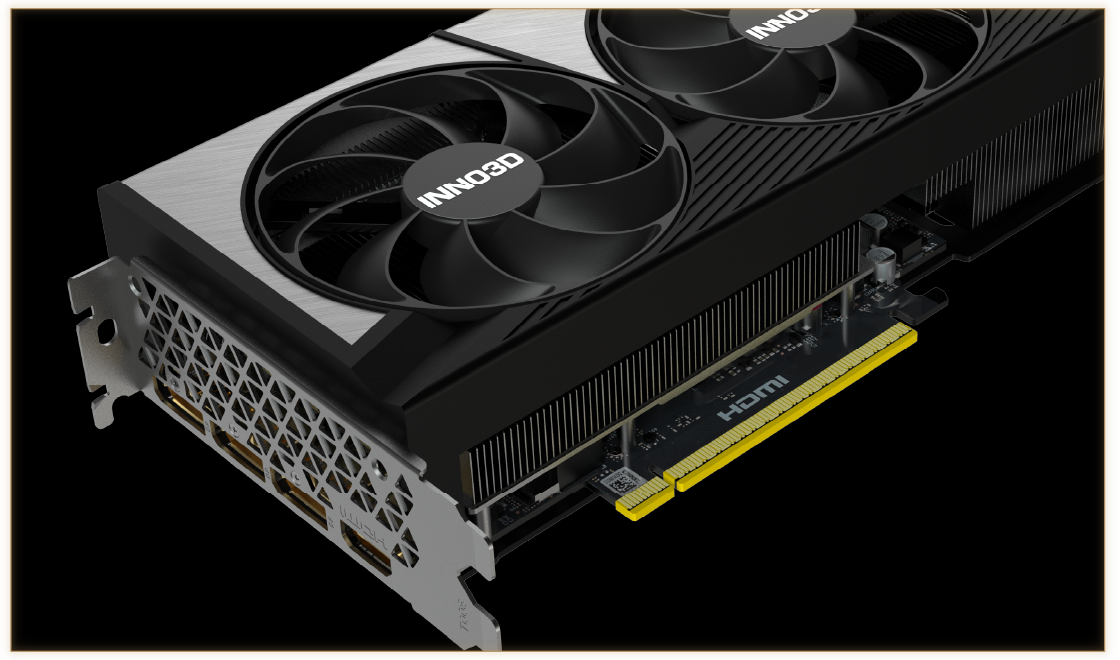

Standard Display Connectors
3x DisplayPort 2.1b, 1x HDMI 2.1b
