INNO3D GEFORCE RTX 3070 TI ICHILL X4 jumbotron bg
C307T4-086XX-1820VA35

INNO3D GEFORCE RTX™ 3070 TI ICHILL X4

INNO3D GEFORCE RTX 3070 TI ICHILL X4 jumbotron
INNO3D GEFORCE RTX 3070 TI ICHILL X4 jumbotron
DirectX Icon
INNO3D GEFORCE RTX 3070 TI ICHILL X3 logo

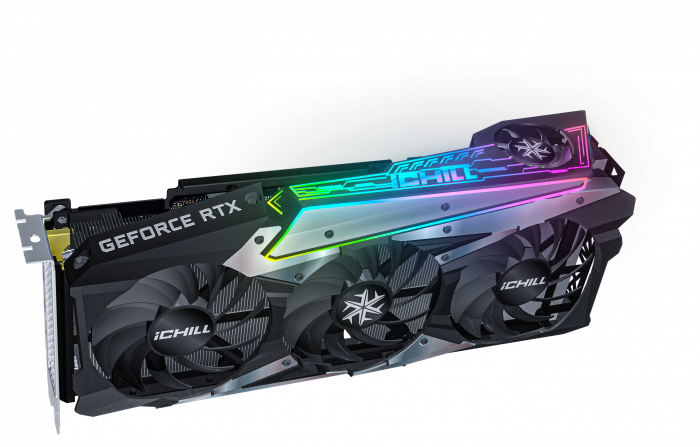

INNO3D GEFORCE RTX™ 3070 TI ICHILL X4

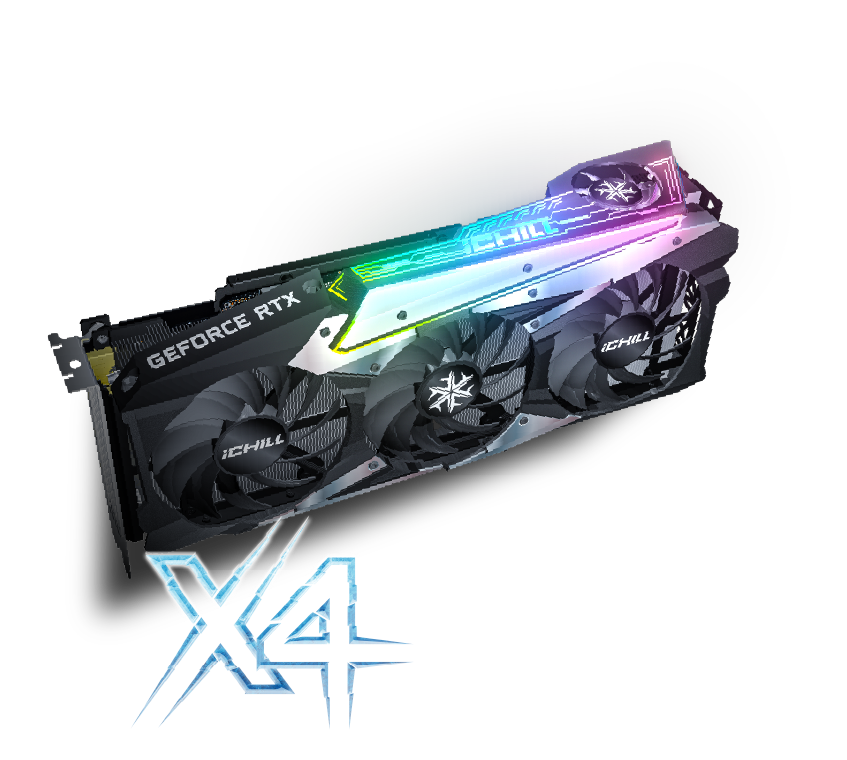

INNO3D® GEFORCE RTX 3070 Ti X4

The iCHILL X4 is now equipped to the RTX™ 3070 Ti that comes with large triple 9cm fan with a side rotor fan to cool the MOSFET and programmable RGB for enthusiast PC builds. The iCHILL X4 was designed specifically for those who want maximum gaming performance while able to showcase their custom builds to their audience.

GEFORCE RTX 30 SERIES

The GeForce RTX™ 3070 Ti graphics card is powered by Ampere—NVIDIA’s 2nd gen RTX™ architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory, it gives you the power you need to rip through the most demanding games.

NVIDIA AMPERE ARCHITECTURE

Ampere

2ND GENERATION

RT CORES

2X THROUGHPUT

3RD GENERATION

TENSOR CORES

UP TO 2X THROUGHPUT

NEW

SM

2X FP32 THROUGHPUT

DLSS bg

DLSS AI ACCELERATION

MAX FPS. MAX QUALITY. POWERED BY AI.

NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX™. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.



*Footage captured on RTX™ 2060 at 3840x2160 max settings.

RAY TRACING

Ray tracing is the holy grail of gaming graphics, simulating the physical behavior of light to bring real-time, cinematic-quality rendering to even the most visually intense games.

VICTORY MEASURED IN MILLISECONDS

NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games.

public://2024-01/Asset 1_25.png

UP YOUR

CREATIVE GAME

Take your creative projects to a new level with GeForce RTX™ 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX™ GPUs give you the performance to create your best.

public://2023-12/INNO3D GeForce RTX 3060 Twin X2 - 08.jpg

STREAM LIKE A BOSS

Steal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app takes your livestreams to the next level with powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. GeForce RTX™ 30 Series GPUs deliver the performance and image quality necessary to give your audience your best—every time.

public://2024-01/Asset 2_21.png
bg

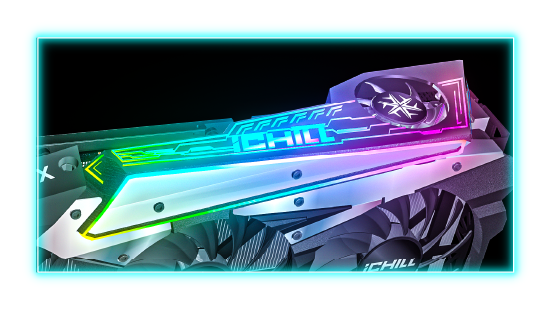

PROGRAMMABLE RGB

With built in MCU control and supports Aura Sync, Mystic Light and RGB Fusion. This RGB plate mounted this very unique asymmetric cooler design will give your system build an edgy and dynamic look.

public://2024-01/Asset 7_5.png




TUNEIT SOFTWARE FOR OC AND RGB CONTROL

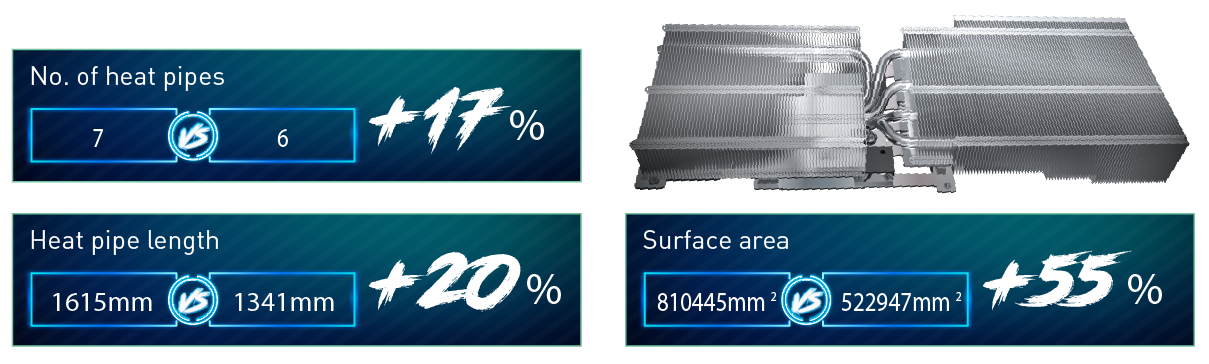

HEATSINK DESIGN

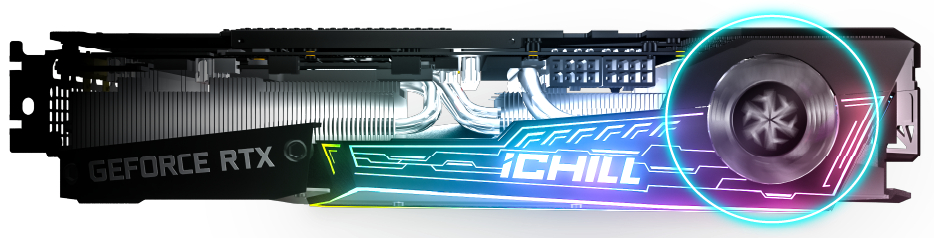

NEW COOLING SOLUTION WITH ROTOR FAN

Triple fan with 9cm Scythe blades to maximise airflow and optimised to operate in low fan speed condition. The X4 boasts a very unique 4.5cm side rotor fan to cool the MOSFET area adding additional cooling power to the X4.

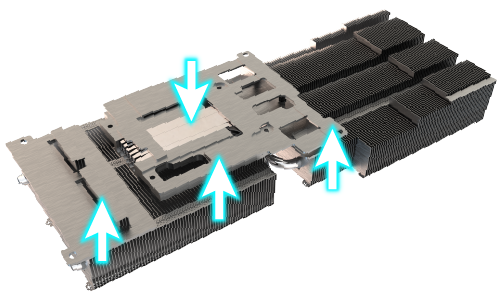

ULTRA-THIN COOLING FINS

Has ultra-smooth DHT surface for GPU composing of 6 heat pipes with CNC process. Copper base for effective MOSFET and memory heat transfer.

public://2024-02/Asset 14.png

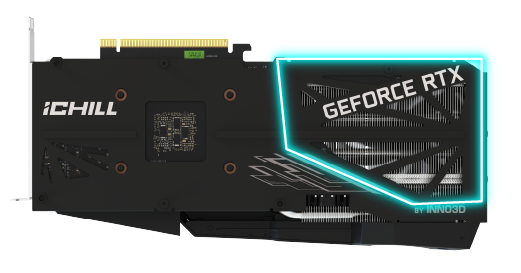

BACK PLATE DESIGN

Solid die casting back plate with openings for fast hot air release from fins.

public://2024-02/Asset 15.png

Privacy Policy | Contact Us

© 2022 NVIDIA Corporation. NVIDIA, the NVIDIA logo, GeForce, GeForce Experience, GeForce RTX™, G-SYNC, NVLink, and ShadowPlay are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners.

© 2022 InnoVISION Multimedia Limited. All rights reserved. The INNO3D, INNO3D and iCHILL logo are the registered trademarks of InnoVISION Multimedia Ltd. in Asia, Europe and / or other countries. All other company and / or product names may be trademarks or registered trademarks of their respective owners.


footer (2)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

YOU MAY BE INTERESTED IN

INNO3D GEFORCE RTX 3070 ICHILL X3
INNO3D GEFORCE RTX™ 3070 ICHILL X3
C30703-08D6X-1710VA38
INNO3D GEFORCE RTX 3060 TWIN X2 OC
INNO3D GEFORCE RTX™ 3060 TWIN X2 OC
N30602-12D6X-11902120
Datasheet:
GPU Engine Specs
GPU Engine Specs
CUDA Cores
6144
Boost Clock (MHz)
1830
Base Clock (MHz)
1575
Thermal and Power Spec
Thermal and Power Spec
Minimum System Power Requirement (W)
750
Supplementary Power Connectors
8+8-pin
Memory Specs
Memory Specs
Memory Clock
19Gbps
Standard Memory Config
8GB
Memory Interface
GDDR6X
Memory Interface Width
256-bit
Memory Bandwidth (GB/sec)
608
Feature Support
Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
2nd Generation
Tensor Cores
3rd Generation
NVIDIA Architecture
Ampere
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
Yes
PCI Express Gen 4
Yes
NVIDIA GeForce Experience
Yes
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI-E 4.0 X16
NVIDIA ShadowPlay
Yes
OS Certification
Windows 10, Linux, FreeBSDx86
NVIDIA Highlights
Yes
NVIDIA G-SYNC™-Ready
Yes
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost™
Yes
Vulkan API
Yes
OpenGL
4.6
DisplayPort 1.4a
Yes
NVIDIA Encoder
7th Generation
NVIDIA Decoder
5th Generation
HDMI 2.1a
Yes
Accessories
Accessories
Installation Guide
Yes
Power Guide
Yes
Graphics Card Stand
-
Graphics Card Dimensions:
Graphics Card Dimensions
Length
300mm
Height
135mm
Width
3-slot
Display Support
Display Support
Multi Monitor
Yes
Maxmium Digital Resolution
7680x4320
HDCP
2.3
Standard Display Connectors
HDMI 2.1, 3x DisplayPort 1.4a
