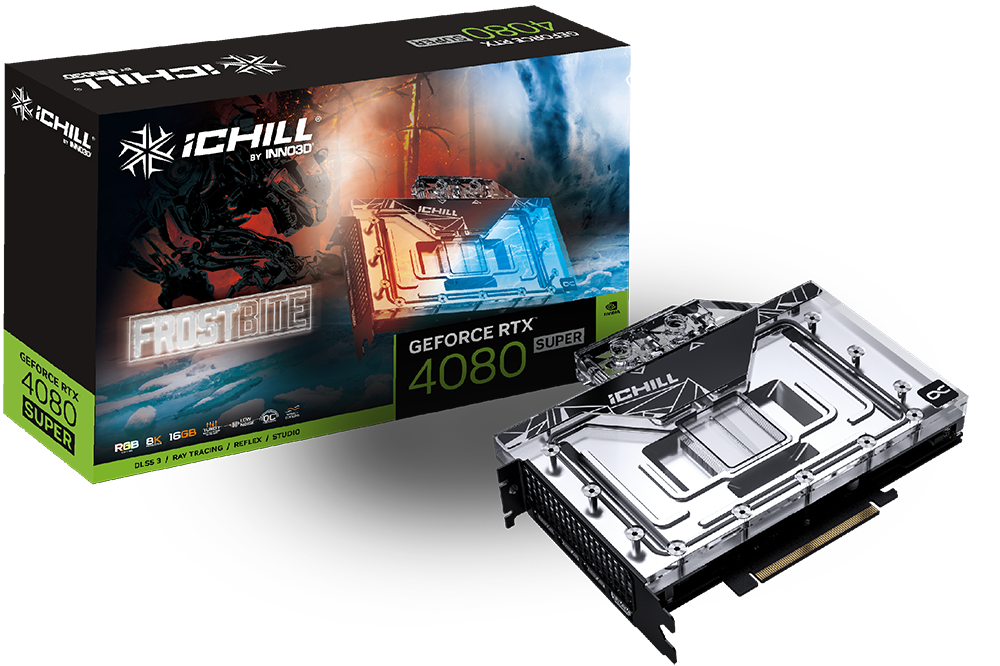

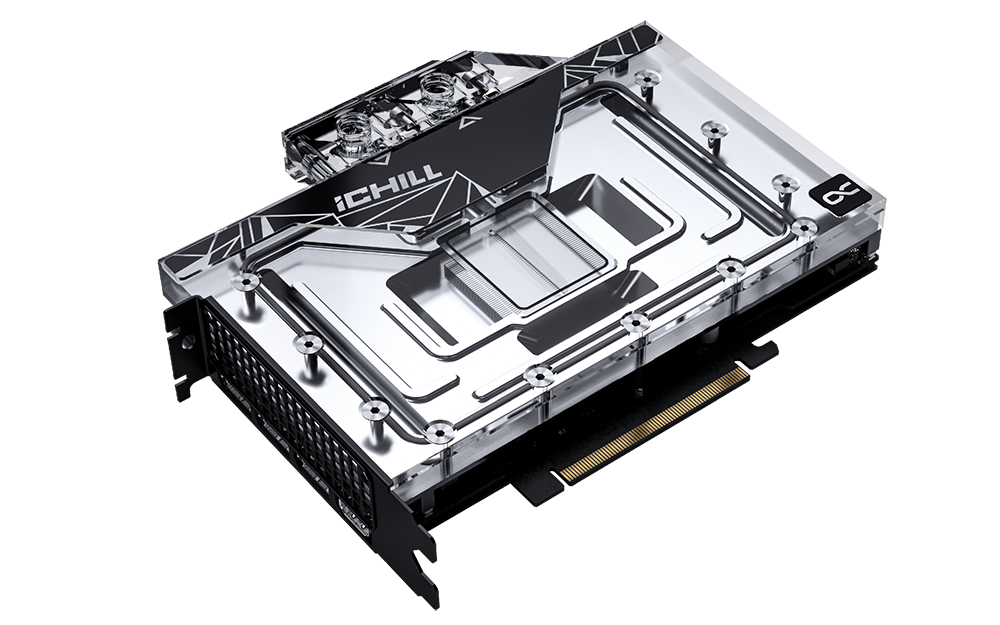

INNO3D GEFORCE RTX 4080 SUPER ICHILL FROSTBITE

LP_4080_SUPER_iCHILL_FB_all-preview2.jpg (822 KB)LP_4080_SUPER_iCHILL_FB_Ultra_all-preview3.jpg (713 KB)

Technical Spec.

GPU Engine Specs:
CUDA Cores 10240
Boost Clock (MHz) 2610
Base Clock(MHz) 2295
Thermal and Power Spec:
Minimum System Power Requirement (W) 750
Supplementary Power Connectors 3x PCIe 8-pin cables (adapter in box) OR 320 W or greater PCIe Gen 5 cable
Memory Specs:
Memory Clock 23Gbps
Standard Memory Config 16GB
Memory Interface GDDR6X
Memory Interface Width 256-bit
Memory Bandwidth (GB/sec) 736
Feature Support:
Real-Time Ray Tracing Yes
Ray Tracing Cores 3rd Generation
Tensor Cores 4th Generation
NVIDIA Architecture Ada Lovelace
Microsoft DirectX 12 Ultimate
NVIDIA DLSS Yes
PCI Express Gen 4 Yes
NVIDIA GeForce Experience Yes
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI-E 4.0 X16
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
Lighting module Programmable RGB: Aura Sync, Mystic Light, Polychrome, RGB Fusion
NVIDIA G-SYNC™-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boost™ Yes
Vulkan API Yes
OpenGL 4.6
DisplayPort 1.4a Yes
NVIDIA Encoder 2x 8th Generation
NVIDIA Decoder 5th Generation
HDMI 2.1a Yes
Accessories:
Installation Guide Yes
Power Guide Yes
Graphics Card Dimensions:
Length 200mm
Height 159mm
Width 37mm
Display Support:
Multi Monitor Yes
Maxmium Digital Resolution 7680x4320
HDCP 2.3
Standard Display Connectors HDMI 2.1a, 3x DisplayPort 1.4a
